Ultrasonic Cleaning Generator

Features of Ultrasonic Cleaning Generator
  • Digital ultrasonic Cleaning Generator, adopts the advanced micro computer control technology and new circuit geometry.

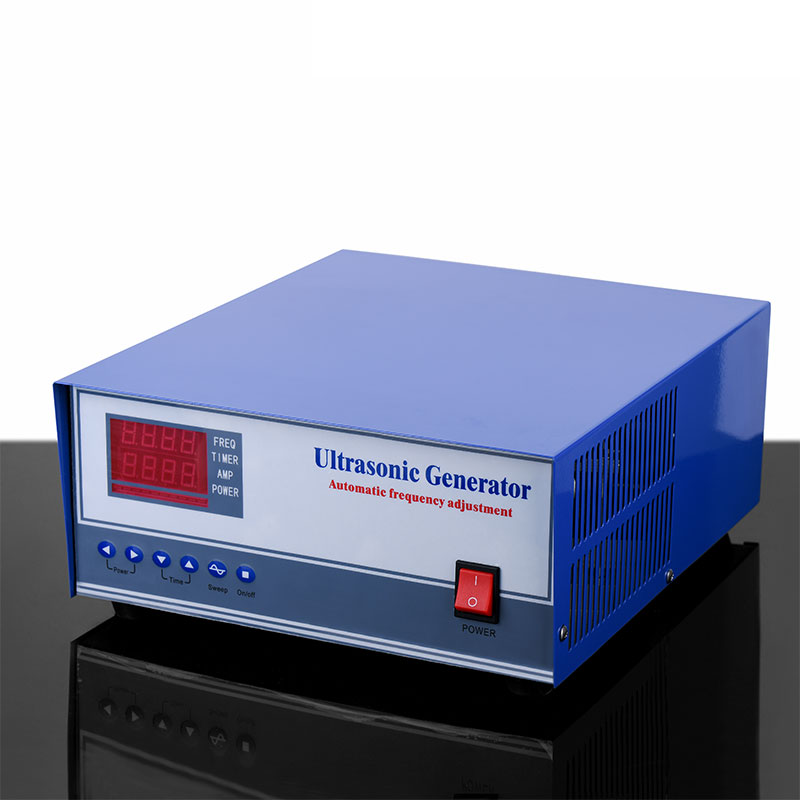

  • Push-Button Programming on front Control Panel providing Such as Power Switch, Ultrasonic Power +/-, 60 Min Timer or Continues & Sweep Frequency.

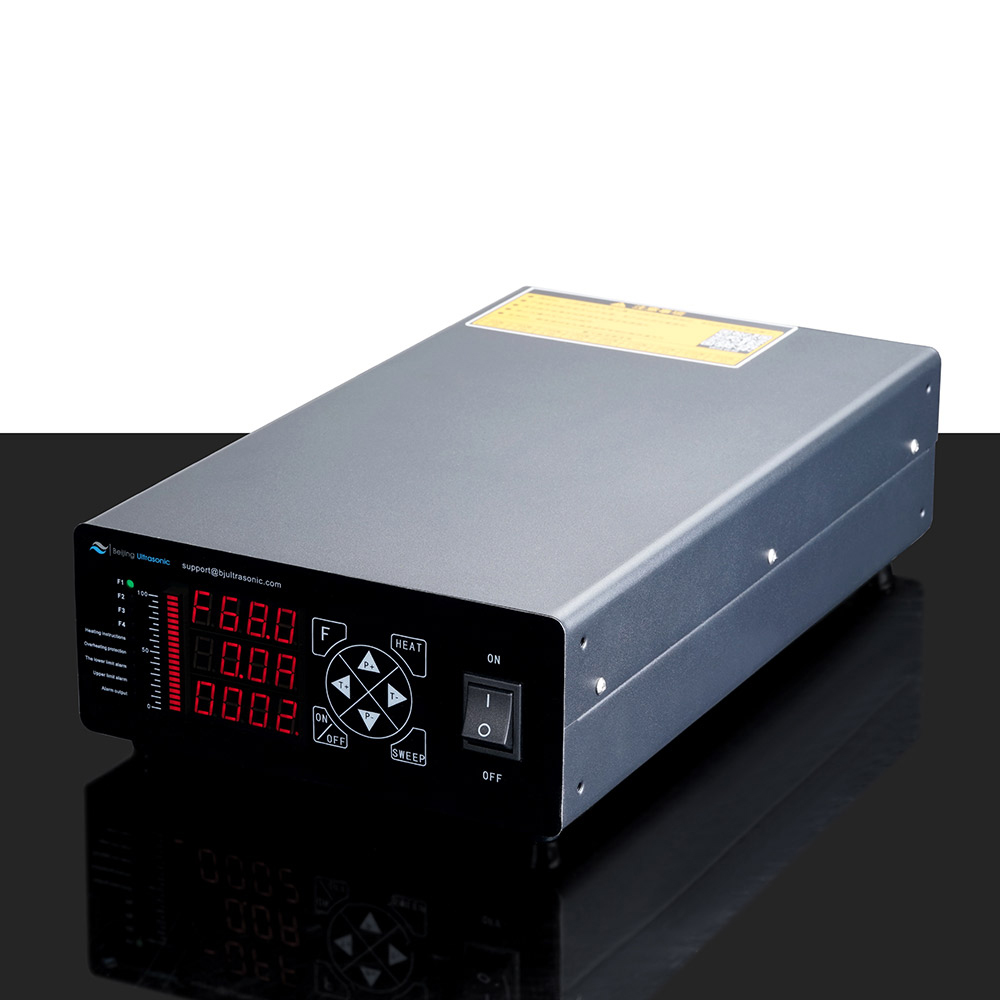

  • On Front Digital Display Panel Can See the Working Condition (Such as The Working Frequency, Timer, Current & Power).

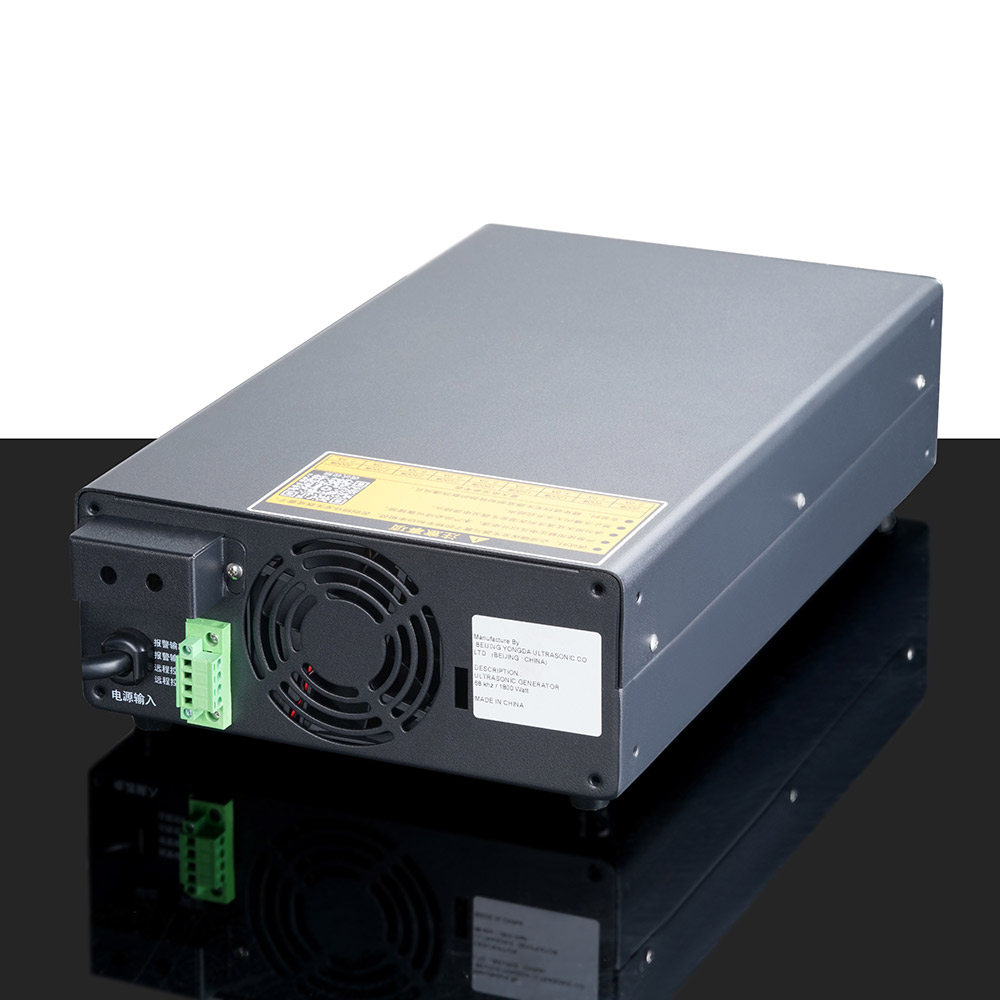

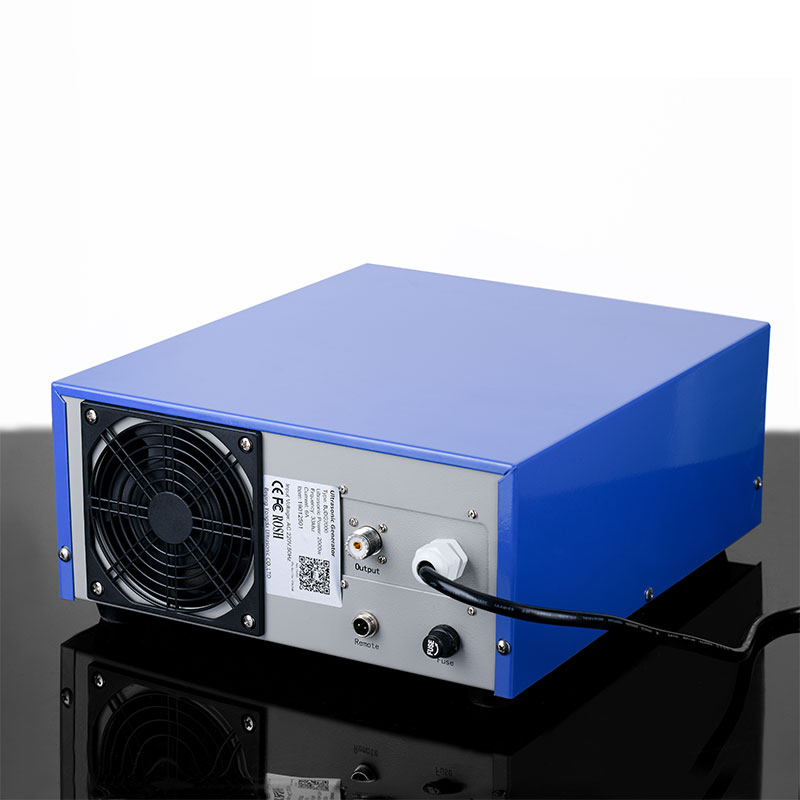

  • On the Back Side of the Generator Provide for Safety that is Glass fuse to avoid overload Generator power.
  • On the Back Side of the Generator Provide PLC Point only for On/Off Programming can work.
  • Adopting Digital Control Technology, Perfect Circuit Design, Stability of Power Output.
  • Over Current Protection, Overheating Protection, Over-Voltage Protection.
  • High And Low Voltage Circuit Is Completely Separated, Operational Safety.
  • Most of the advantage of the Ultrasonic Cleaning Generator it take auto tunning.
  • Key Benefit of the Generator : Easy Installation, Ready to use Generator, Directly Plug & Play.
  • Performance of the Generator : Uniform Vibration, Uniform Ultrasonic Power, Uniform Frequency.
  • This Generator will work only with Our Transducer.
  • The Ultrasonic Power & Timer Can Be Adjust as Required to Meet with Different Products Cleaning. Time Control : 0 To 60 Min Or continues & Range of Power Control: 0 To 100% and the Efficient Cooling System.

Ultrasonic Cleaning Generator 20 Khz to 80 Khz Frequency

Main technical parameters of Digital Ultrasonic Cleaning Generator.

Generator Power: 1200, 1500, 1800, 2000 & 2400 Watt
Size: 460mm*360mm*160mm (L*W*H)
Available Frequency: 20 Khz, 25 Khz, 33Khz, 40 Khz, 68 Khz, & 80 Khz
Selectable Frequency: Any One Frequency
